NickBromhead

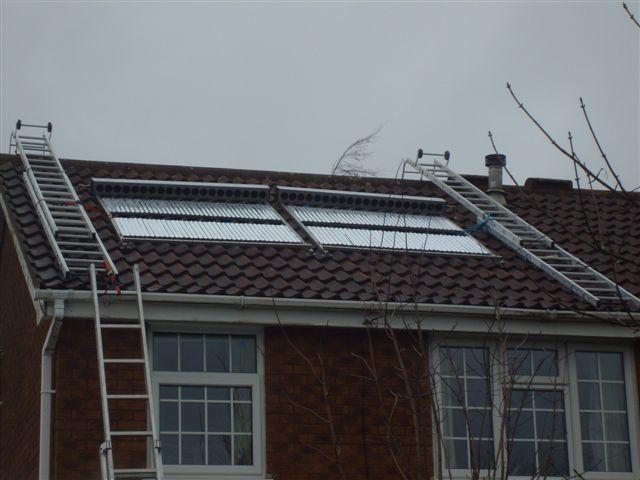

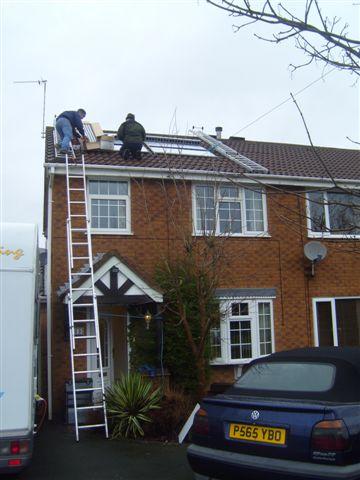

2 x Eco-58-1800-20 Solar Collectors
Flowcon A Pump Station
Resol BS4 variable pump speed Controller
210 Litre Unvented Cylinder
Inline Air Scoop
Eco-nomical 3 Port Diverter Valve

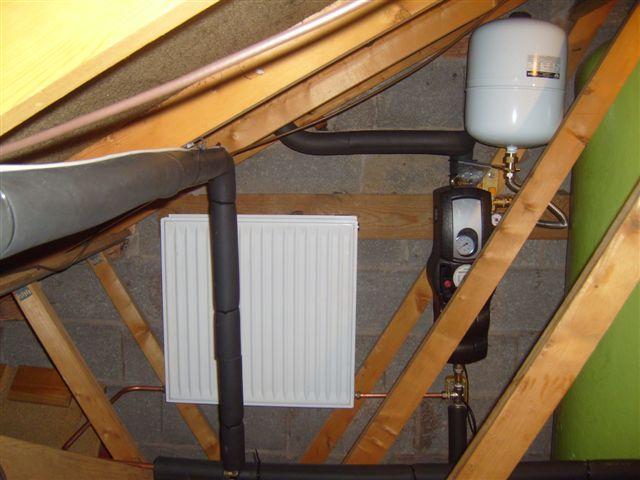

1.2KW Radiator Heat Dump

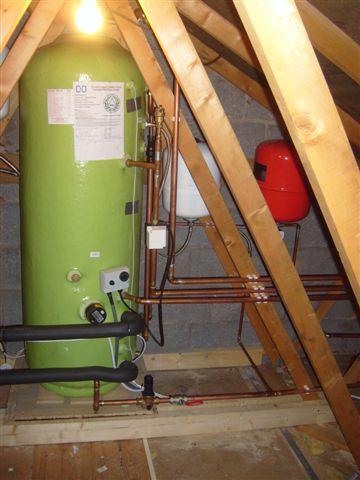

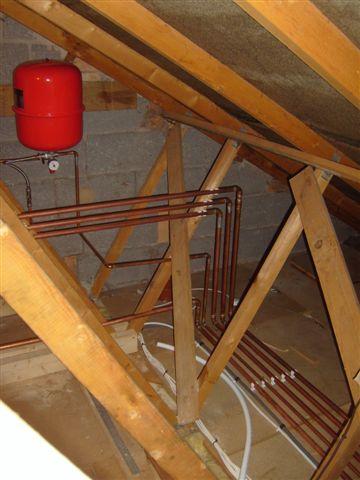

Note the three expansion vessels pictured in Nick's loft. One is for the solar circuit, the one for the unvented cylinder, and one for the central heating circuit..

Justin also carried out a complete overhaul of his hot water/central heating system which included:

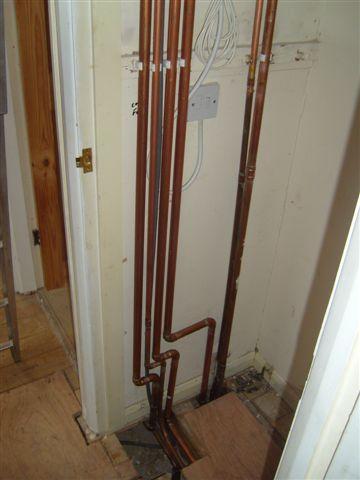

Moving the central heating pump and diverter valve to a more accessible
area.

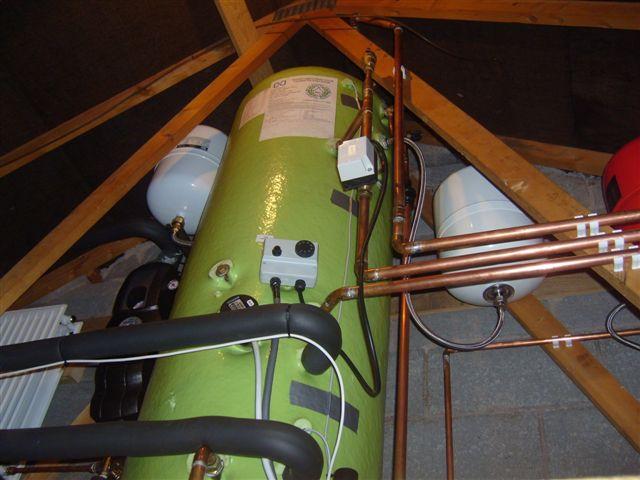

Replacing a 120 litre vented cylinder with a 210 litre unvented cylinder
that has been positioned in the loft area. This has completely released the
airing cupboard that Nick plans to use for access into the loft!

His central heating system was changed from a vented to a sealed system
again removing header tanks from the loft area. This change will allow Nick
to change his ageing Boiler in the future without any additional work to the
system.

Thanks to Nick and Justin for this information
