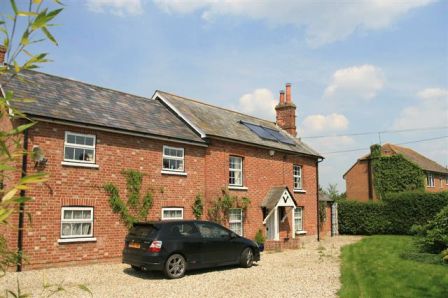

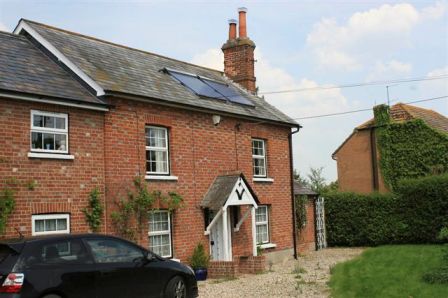

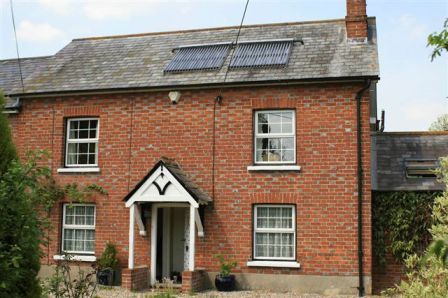

Justin installed a system for Bob and Claire Plumridge near Reading.  Justin writes:

"Bob and Claire Plumridge, based in Chieveley near Reading, requested a quotation in March. While having a look at the possible install Bob showed me the Twin Coil Solar Cylinder that had been installed in preparation for the Solar system. He was a little shocked when I told him that the cylinder had been incorrectly fitted as the boiler flow and return was linked to the bottom coil, which is the Solar Coil. Luckily, isolation valves were situated on the flow and return which allowed an easy changeover.


Equipment Installed:

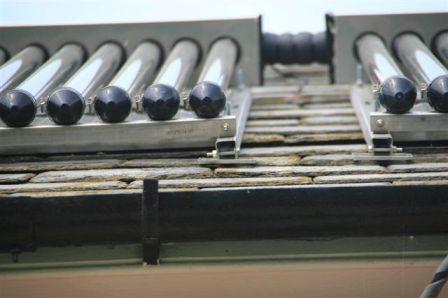

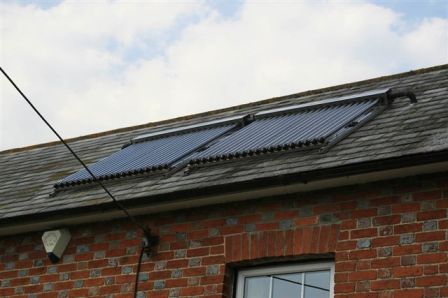

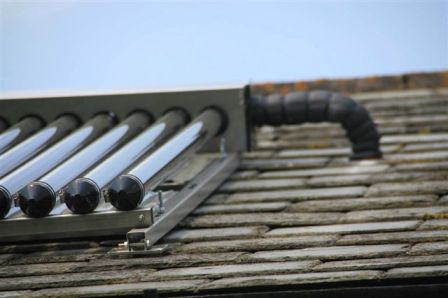

2 x 20 Tube 47mm Economical Evacuated Tube Collectors
Resol Flowcon A with BS4 Controller
18 Litre Expansion Vessel with mounting kit Resol 3 port valve 1KW Heat-dump
Radiator situated in loft.
All pipe work insulated with Armaflex 19mm"





Thanks to Bob, Claire and Justin for this information
