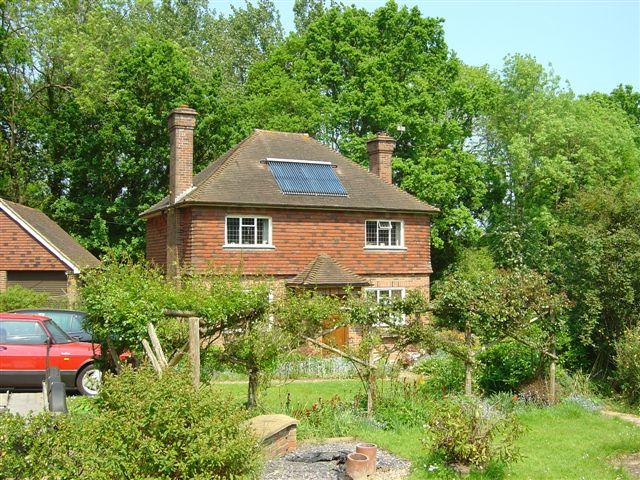

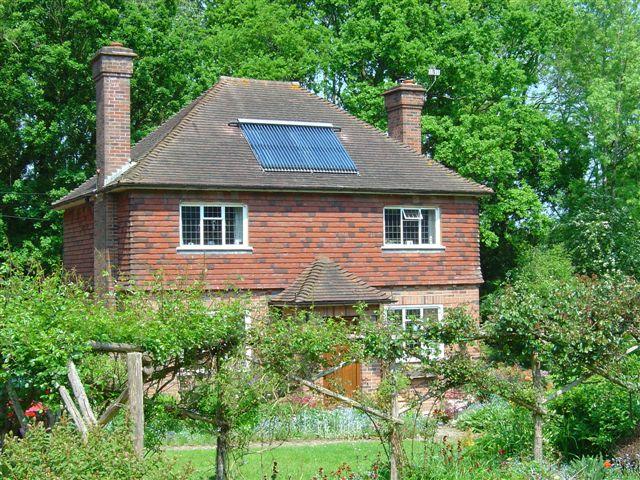

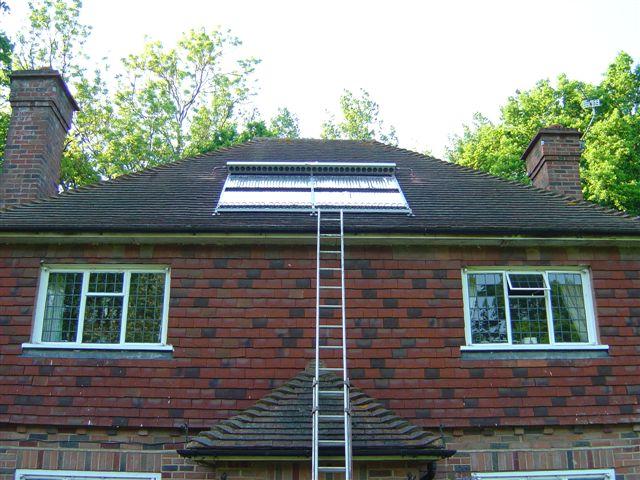

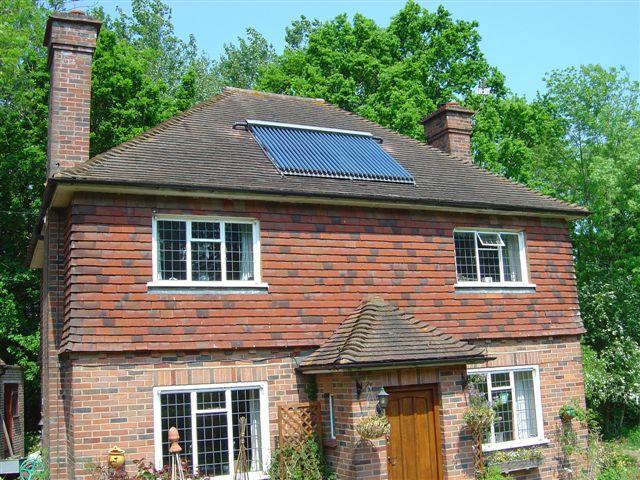

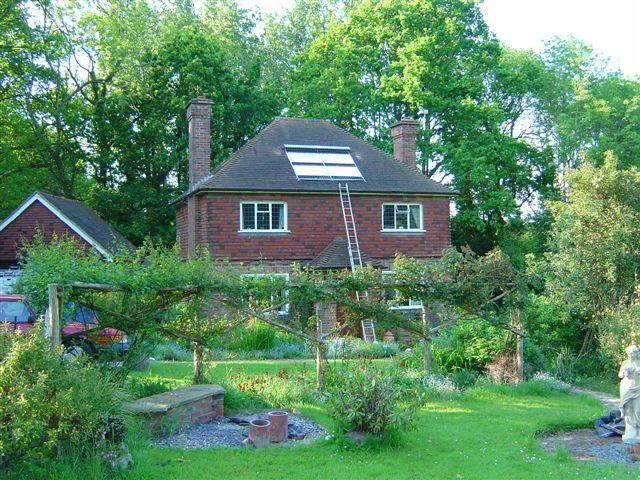

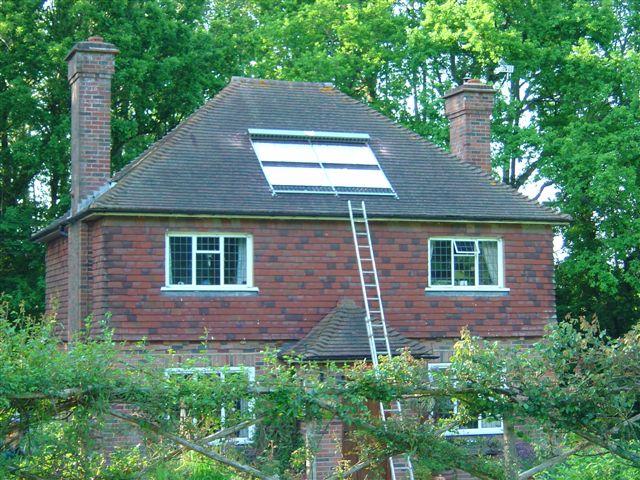

Justin installed a system for Graham Child. Justin
"I installed for Graham Child who is based Mayfield,
Sussex. Graham had
already installed a 250 Litre Solar Twin Coil Cylinder and required me
just to complete the solar installation. Graham was keen to move to solar
water heating after finding he was paying nearly 60 pence per litre for oil
in 2008 compared to just 19 pence in 2007. He is looking to cut his oil
usage due to the dramatic price rises. A 1KW Heat-dump Radiator was fitted
to allow excess heat to be safely dumped from circuit.
System consists of;
Newark Twin Coil 250 Litre cylinder
1 x 30 Tube 58mm Evacuated Collector
Resol Flowcon A with BS4 Controller
18 Litre Expansion Vessel with mounting kit
Resol 3 port valve
1KW Heatdump Radiator situated in loft"
Thanks to Graham and Justin for this information.
